IBAK

RapidView delivers advanced sewer inspection solutions through a full lineup of high-performance pipeline inspection technologies. As the exclusive North American provider of IBAK Helmut Hunger GmbH equipment, RapidView offers some of the most trusted and innovative systems in the industry.

The product range includes high-resolution push cameras, powerful robotic crawlers, lateral launch systems, and sonar profiling tools. Each designed for accuracy, durability, and ease of use. These solutions support a wide range of pipe sizes, materials, and inspection environments.

RapidView’s sewer inspection solutions help contractors, municipalities, and utilities identify pipeline defects, reduce maintenance costs, and make informed repair decisions. Every system is built with advanced imaging technology, intuitive controls, and seamless data reporting.

Recognized for both innovation and reliability, RapidView continues to lead the way in modern pipeline inspection.

Visit Website

Cameras

ARGUS® 6

AxialCam® 2.0

ORPHEUS®

ARGUS® 6

Key Features:

Full Digital HD Resolution (1920 x 1080p)
10x Optical Zoom / 16x Digital Zoom
8 white Power-LEDs, 6 white 5 mm LEDs for illuminating joint gaps
Automatic Lighting Control System eliminates excess image noise
ROTAX® Always Upright Image Correction
Built-in laser for deformation & diameter measurements
One-push Autofocus provides sharp image on command
Panning Range +/- 120°
Optional 3D GeoSense Pipeline & Lateral Mapping Sensor

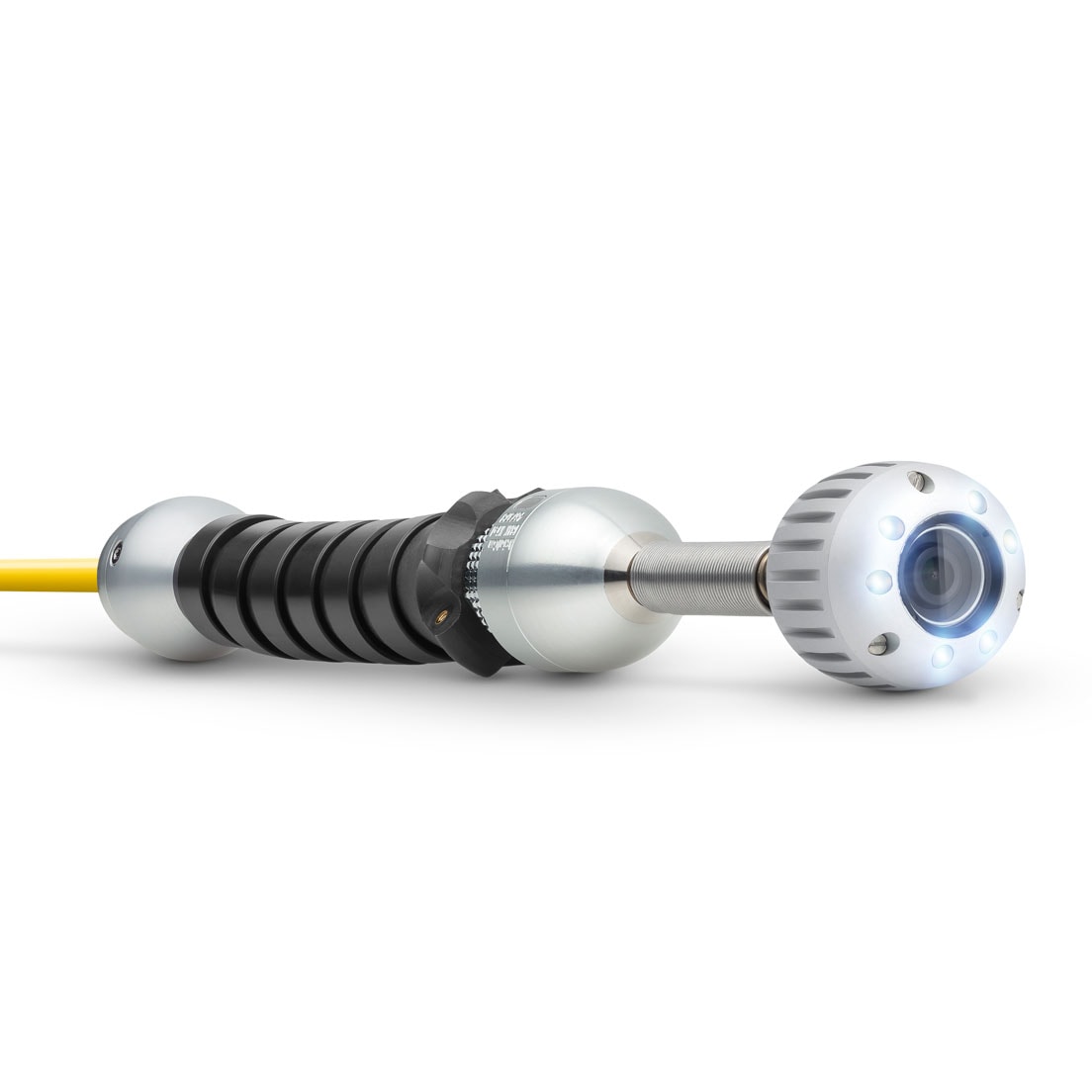

AxialCam® 2.0

Key Features:

Lateral Launch Capability
6 white Power-LEDs
Self-leveling Upright Picture Control
Integrated Sonde Location Transmitter in Pushrod Cable

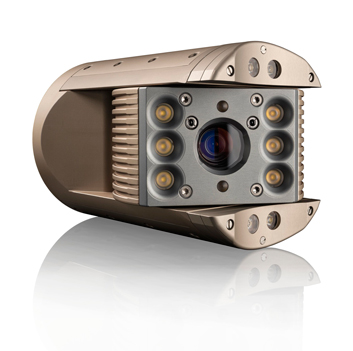

ORPHEUS®

Key Features:

10x Optical Zoom / 12x Digital Zoom
10+2 High Power LEDs (2x for illuminating joint gaps) switchable, controllable, temperature controlled
LaserScan – Continuous Profile Analysis for deformation measurement
Auto-Upright Image Control
One-push Autofocus provides sharp image on command
E-Flip – Correctly oriented picture every 180°
Pan/Tilt Range of 240° (+/- 120°)
Optional 3D GeoSense Pipeline & Lateral Mapping Sensor

ORPHEUS® HD

ORION® SD

ORION® 3.0 HD/SD

ORPHEUS® HD

Key Features:

Full Digital HD Resolution (1920 x 1080p)
10x Optical Zoom / 12x Digital Zoom
10+2 High Power LEDs (2x for illuminating joint gaps) switchable, controllable, temperature controlled
LaserScan – Continuous Profile Analysis for deformation measurement
Auto-Upright Image Control
One-push Autofocus provides sharp image on command
E-Flip – Correctly oriented picture every 180°
Pan/Tilt Range of 240° (+/- 120°)
Optional 3D GeoSense Pipeline & Lateral Mapping Sensor

ORION® SD

Key Features:

16x Digital Zoom
12 High Power LEDs, controllable
Auto-Upright Image Control
Built-in laser for deformation & diameter measurements
Panning Range +/- 120°
Integrated Sonde Location Transmitter
Optional 3D GeoSense Pipeline & Lateral Mapping Sensor
Available for Lateral Navigation with additional Kiel Stick attachment

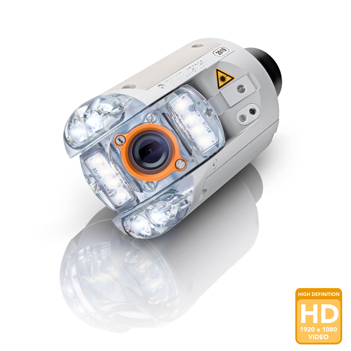

ORION® 3.0 HD/SD

Key Features:

Full Digital HD Resolution (1920x1080p), HD Resolution (1280x720p), and SD Resolution (720x576p)
2x Optical Zoom / 16x Digital Zoom
12 High Power LEDs, controllable
Auto-Upright Image Control
Built-in laser for deformation & diameter measurements
Panning Range +/- 120°
Integrated Sonde Location Transmitter
Optional 3D GeoSense Pipeline & Lateral Mapping Sensor
Available for Lateral Navigation with additional Kiel Stick attachment

ORION L

NANO L

NANO® HD

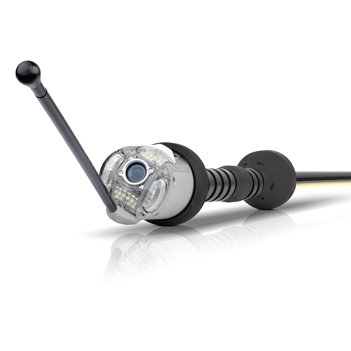

ORION L

NANO L

NANO® HD

Key Features:

Full Digital HD Resolution (1920 x 1080p)
4 Power-LEDs
Auto-Upright Image Control
Built-in Laser for Deformation & Diameter Measurement
Panning Range +/- 120°
Integrated Sonde Location Transmitter
Optional 3D GeoSense Pipeline & Lateral Mapping Sensor
Available for Lateral Navigation with optional Kiel Stick Attachment

Drums

KW 207

KW 307

KW 305/310

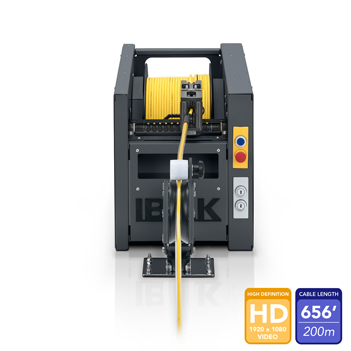

KW 207

Cable Reels The KW 207 reel was designed to be compact, powerful and easy to maintain. This design is based on decades of manufacturing expertise and real world project requirements. This drum includes an automatic level wind, powerful retrieval motor, rear tractor/winch controls and an emergency stop switch.

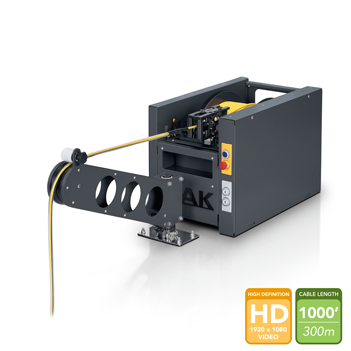

KW 307

Cable Reels The KW 307 is the sibling of the KW 207 compact cable reel. Sharing the same core features, the KW 307 is larger to accommodate up to 1000′ linear feet of cable. Whether mounted in a vehicle, ATV, or trailer, this drum is a compact, economical option for most mainline inspections that are compatible with the BP 3 Controller.

KW 305/310

Cable Reels The KW 305/310 is our most popular reel for use in mainline and lateral launch inspections. Features include: adjustable boom and optional work light, integrated power winch for lowering and retrieving equipment, automatic level-wind, fully synchronized cable management, a remote control pendant for tractor and lateral launch functions, and the 310 supports Fiber Optic cables for digital HD video resolution. Capacity is up to 1000 feet (300m) of high-strength cable.

KW 505

Cable Reels The KW505 has all the same great features of the KW 305 and accepts up to 2000 feet (600m) of high-strength fiber-optic cable or standard high-strength cable. The KW 505 allows longer distance inspections and has the capability of transmitting the data from PANORAMO® 360º Pipeline Scanners as well as any of our digital HD resolution camera heads.

Control Modules

BS 10.0

BS 7-10X

BS 3.5-10X

BS 10.0

BS 7-10X

BS 3.5-10X

BP 3

Tractors

T76 Camera Tractor

T66 Camera Tractor

PANORAMO® 150 4K

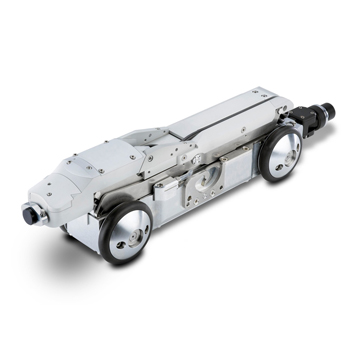

T76 Camera Tractor

Key Features:

Zero Radius Steering
Automatic Tilt Compensation (ATC)
Dual-Axis Pivoting Connection
1640’ (500m) Cable Length
Optional Tractor Extension Kit
Optional Sonde Location Transmitter
Compatible with LISY Lateral Launch Attachment
Available for HD

T66 Camera Tractor

Key Features:

Zero Radius Steering
Automatic Tilt Compensation (ATC)
Dual-Axis Pivoting Connection
1000’ (300m) Cable Length
Optional Elevator Attachment
Available for HD

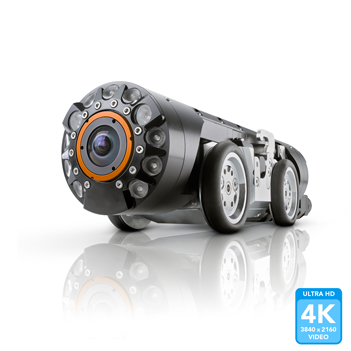

PANORAMO® 150 4K

Key Features:

Collect data in the field – analyze back at the office
Twin 185° Digital Fisheye Lens Cameras
High Power LED Lighting
4K (4096 x 2160 pixels) Resolution – 4x Greater than digital HD
Maximum Speed of 69’ (21m) / min.
Multiple Views for Data Analysis – Perspective, Unfolded, and Full Pipe Segment Unfolded Views

PANORAMO® 4K

LISY 4.2 Lateral Launch

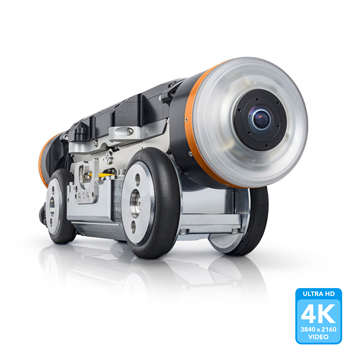

PANORAMO® 4K

Key Features:

Collect data in the field – analyze back at the office
Twin 185° Digital Fisheye Lens Cameras
Powerful Xenon Strobe Lighting
4K (4096 x 2160 pixels) Resolution – 4x Greater than digital HD
Maximum Speed of 69’ (21m) / min.
Multiple Views for Data Analysis – Perspective, Unfolded, and Full Pipe Segment Unfolded Views
Optional 3D GeoSense Pipeline & Lateral Mapping Sensor

LISY 4.2 Lateral Launch

Key Features:

Standard Pressurized Protection
180° Pan Range (Articulation Arm)
45° Tilt Range (Articulation Arm)
Variable Control Push Speed
600′ (182m) Overall Cable Length
120′ (36m) Pushrod Length

System Packages

Core HD System

ELITE Mainline

LISY 4.2 Lateral Launch System

Core HD System

Mounted Systems System includes: ORPHEUS HD T66 HD Tractor KW 505 Cable Reel BS 7 – 10 X Controller Elevate your inspections with the clarity of high-definition resolution. With the ORPHEUS HD and the T66 HD Tractor, you have the tools to inspect 80% of the world’s pipelines. The ORPHEUS HD delivers crystal-clear digital HD picture quality, complemented by bright LED lights that illuminate some of the world’s largest pipelines. The T66 HD Tractor is ideal for inspections in pipelines 6”-18” diameter, and a T76 HD can always be added later if you are in larger pipelines on a regular basis. Enter the world of HD inspections with this comprehensive system.

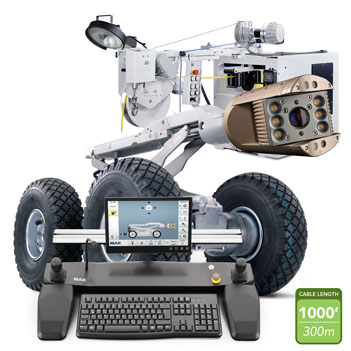

ELITE Mainline

Mounted Systems System includes: ORPHEUS Camera T76 Tractor BS 3.5 – 10 X Controller KW 305 Cable Reel Pneumatic Tires Internal Inclinometer This mainline inspection system is equipped with everything you need to inspect larger pipelines up to 120” (3000mm) in diameter. The ORPHEUS camera delivers impressive picture clarity, along with bright LED lighting to illuminate large areas. The ELITE Mainline package includes an internal inclinometer to accurately measure pipe grade, additional pneumatic wheels for improved traction, and other available accessories (Contact a member of the sales team for more information regarding available accessories). Upgrade your inspections and tackle larger pipelines with this impressive system!

LISY 4.2 Lateral Launch System

Mounted Systems The LISY 4.2 is IBAK’s advanced lateral launch system. This impressive inspection system can launch from 6” to 78” mainlines into laterals 2” and up. With shorter front connector options, continuous camera rotation, and smaller launch cameras, it makes more demanding projects like reverse launching a breeze. The LISY’s articulating arm rotates and tilts with precision, ensuring accurate camera placement and quick launching. Located on the articulating arm is the LISYCam Control Camera, which allows operators to view the position of their launch camera for a seamless lateral inspection. With a completely revamped drive system, the LISY 4.2 is equipped with a larger drive motor and more efficient wheel pressure to increase launch speed by up to 4x faster than any other lateral launcher on the market. Look no further than the LISY 4.2 for all your lateral launching needs.

MainLite® HD

MiniLite® 3.0 HD

PANORAMO® 4K Package

MainLite® HD

Mobile Systems The MainLite® HD is based around two compact cable drums (KW 207 / KW 307) and the BP 3 multi-function portable controller. The entire unit can be mounted in an inspection vehicle, UTV, or a pickup bed. For portable applications, you can place the unit in the MainLite® Portable Cart, which provides a cushioned seat and an ergonomic mount for the BP 3 Controller. Whether you are a small town, large municipality, or contractor, the MainLite® HD System is adaptable, capable, and ready to go at the push of a button.

MiniLite® 3.0 HD

Mobile Systems The MiniLite 3.0 Push Camera System is a compact and versatile platform for inspection of small diameter sewer lines. With a bright 12” touch screen and a built in Windows PC, this controller is ready right out of the box. The multi-function joystick allows precise control of our pan & tilt cameras, and with continuous rotation built-in, you won’t have to worry about over-rotating your camera. The MiniLite 3.0 works with all of our small diameter inspection cameras for plumbing, lateral inspection, etc. Compatible with ORION® 3/ORION-L® 3 and NANO® HD/NANO-L® HD push cameras. Optional skid configurations are available.

PANORAMO® 4K Package

Mounted Systems Package includes: PANORAMO® 4K Pipeline Scanner KW 505 Fiber Optic Reel with 1640’ of cable BS 7 – 10 X Controller Electronic Lift Inclinometer PANORAMO® PCI Card Downhole Rollers Pressure Test Set PANORAMO® has revolutionized both pipeline and manhole inspections with its cutting-edge optical scanning technology. With the PANORAMO® 4K Package operators can inspect up to 5x more pipe per day with amazing image clarity and astonishing deliverables including 360° views and un-folded views. The virtual pan & tilt mode allows for convenient office-based inspections, allowing users to inspect now and analyze the data later. Get everything you need to increase your inspection speed and profits with this incredible package.

Premium HD System

PREMIUM Mainline

Premium HD System

Mounted Systems System includes: ORPHEUS HD T76 HD Tractor KW 505 Cable Reel BS 7 – 10 X Controller Discover the power of high-definition inspections with the ORPHEUS HD sewer camera system. This Premium HD system includes an innovative HD camera and our powerful T76 HD steerable tractor, designed to handle pipelines in 6” diameter or larger. The bright LED lights provide ample illumination, even in the largest pipelines up to 120” diameter. Upgrade your inspection game with the Premium HD sewer inspection system.

PREMIUM Mainline

Mounted Systems System includes: ORPHEUS Camera T76 Tractor KW 305 Cable Reel BS 3.5 – 10 X Controller Conduct video inspections with ease using our Premium Mainline inspection system, designed for 6” – 48” diameter pipeline. Enjoy the benefits of a powerful synchronized KW 305 cable reel (1000’/300m pull distance), a robust T76 tractor and ORPHEUS camera, and the user-friendly BS 3.5 – 10 X Control Center. Ensure the safety of your personnel with the built-in cable winch, which can lower the tractor into the manhole with ease, reducing the risk of injury or damage. Inquire today to learn how quality makes the difference.
